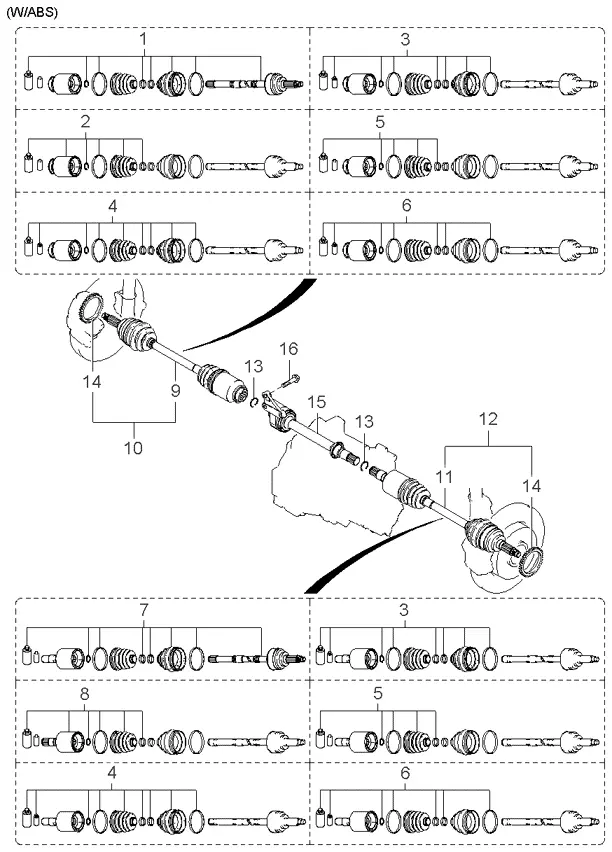

DRIVE SHAFTS KIA CARENS II 02 (2002-2006)
| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 22510/1 | 0K2JT22510 | 001 | JOINT SET - OUTER, RH | | 11.12.2003 | 01.08.2006 |
|
| 22520/2 | 0K2JT22520 | 001 | JOINT SET - INNER | | 11.12.2003 | 01.08.2006 |
|
| 22530/3 | 0K2JT22530 | 002 | BOOT SET-OUT.JOINT,RH | | 11.12.2003 | 01.08.2006 |
|
| 2253X/4 | 0K2JT2253X | 002 | BOOT SET | | 11.12.2003 | 01.08.2006 |
|
| 22540/5 | 0K2JT22540 | 002 | BOOT SET - INNER JOINT | | 11.12.2003 | 01.08.2006 |
|
| 22550/6 | 0K2JT22550 | 002 | BAND & CLIP SET | | 11.12.2003 | 01.08.2006 |
|
| 22510A/7 | 0K2JT22610 | 001 | JOINT SET - OUTER | | 11.12.2003 | 01.08.2006 |
|
| 22520/8 | 0K2JT22620 | 001 | JOINT SET - INNER | | 11.12.2003 | 01.08.2006 |
|
| 51600R/9 | 0K2JT25500A | 001 | SHAFT ASSY - DRIVE, RH | | 11.12.2003 | 01.08.2006 |
|
| 51600R/10 | 1K2JT2550XA | 001 | SHAFT ASSY - DRIVE, RH | | 11.12.2003 | 01.08.2006 |
|
| 25400Z/11 | 0K2JT25600A | 001 | SHAFT ASSY - DRIVE, LH | | 11.12.2003 | 01.08.2006 |
|
| 25400Z/12 | 1K2JT2560XA | 001 | SHAFT ASSY - DRIVE, LH | | 11.12.2003 | 01.08.2006 |
|
| 14893/13 | 0G00325421 | 001 | CLIP, 2000CC | | 11.12.2003 | 01.08.2006 |
|
| 5170AK/14 | 0K2N133471 | 002 | SENSOR RING - ABS, FRONT | | 11.12.2003 | 01.08.2006 |
|
| 25700/15 | 0K2NC25700A | 001 | JOINT SHAFT ASSY | | 15.04.2002 | 01.08.2006 |
|
| 55251A/16 | 0K20G25745 | 003 | BOLT - REAMER, GAS. | | 15.04.2002 | 01.08.2006 |
|
