SUSPENSION MECHANISM - FRONT KIA CARNIVAL/SEDONA 99 (1999-2005)

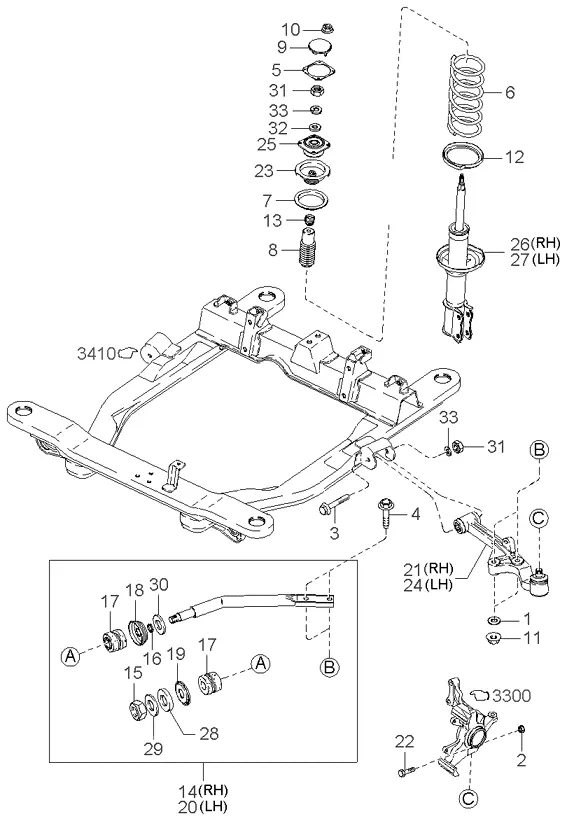

Scheme SUSPENSION MECHANISM - FRONT KIA CARNIVAL/SEDONA 99 (1999-2005)
PNCPart NumberQtyPart NameModel DescriptionStart DateEnd Dateinformation
62616/1KFB0126137A 004WASHER - [PLAIN]08.07.199901.11.2005
21957A/20H26628091A 002NUT - FLANGE, 98MY,99MY08.07.199901.11.2005
1132CB/30K72A28112 002BOLT, COACH08.07.199901.11.2005
1140AT/40H26628312 004BOLT08.07.199928.11.2001
1177AA/40K52Y34887 004BOLT28.11.200126.12.2002
1010AB/40K52Y34887A 004BOLT26.12.200201.11.2005
Z3151/50H26634003 002SHEET08.07.199901.11.2005
34011/60K55C34011 002SPRING - COIL, FRONT08.07.199902.02.2001
34011/60K55C34011A 002SPRING - COIL, FRONT02.02.200101.11.2005
34011/60K55A34011 002SPRING - COIL, FRONT11.01.1999
34011/60K55234011D 002SPRING - COIL, FRONT11.01.199902.02.2001
34011/60K55234011E 002SPRING - COIL, FRONT02.02.200101.11.2005
54623A/70K55234012 002PAD - FRONT SPRING, UPPER08.07.199907.02.2002
54623A/70K55234012A 002PAD - FRONT SPRING, UPPER07.02.200215.12.2002
54623A/70K55234012B 002PAD - FRONT SPRING, UPPER15.12.200201.11.2005
28015/8KGJ2134015A 002BOOT - DUST08.07.199901.11.2005
34019/9M101134019 002CAP, 2000CC08.07.199920.12.2001
27303/90K55234019 002CAP20.12.200101.11.2005
1338AE/10KH38034034 008NUT - FLANGE08.07.199901.11.2005
39037/110B00139037B 004NUT08.07.199905.10.2002
22457/11KKY0139037 004NUT05.10.200203.06.2003
39037/110K53M34037 004NUT03.06.200301.11.2005
54621B/120K552340A3 002RUBBER SEAT - SPRING LOWER08.07.199901.11.2005
54173/130K55234111 002STOPPER - BUMPER08.07.199901.11.2005
34130/140K55234130C 001ROD ASSY-TENSION,RH08.07.199901.11.2005
10480/150887134133A 002NUT08.07.199901.11.2005
23361/160K55234135 002SPACER08.07.199901.11.2005
34136/170S08334136A 004CUSHION - ROD08.07.199901.11.2005
34137/180K55234137 002RETAINER - CUSHION08.07.199901.11.2005
34137A/190K71034137A 002RETAINER - CUSHION08.07.199901.11.2005
34130Z/200K55234140C 001ROD ASSY-TENSION,LH08.07.199901.11.2005
28300A/210K55234300B 001ARM ASSY - LOWER, RH08.07.199928.11.2001
28300A/210K55234300C 001ARM ASSY - LOWER, RH28.11.200101.11.2005
28241B/22KGJ2134097B 002BOLT - FLANGE08.07.199901.11.2005
34341/230K55234340 002SEAT - SPRING, UPPER08.07.199928.02.2000
34341/230K55234340A 002SEAT - SPRING, UPPER28.02.200011.01.2001
34341/230K55234340B 002SEAT - SPRING, UPPER11.01.200101.11.2005
54510B/240K55234350B 001ARM ASSY - LOWER, LH08.07.199928.11.2001
54510B/240K55234350C 001ARM ASSY - LOWER, LH28.11.200101.11.2005
54610D/250K55234380B 002RUBBER - STRUT MOUNTING, FRONT08.07.199931.08.2000
54610D/250K55234380C 002RUBBER - STRUT MOUNTING, FRONT31.08.200001.11.2005
54640A/260K55A34700 001SHOCK ABSORBER ASSY - FRONT, RH08.07.199928.09.2000
54640A/260K55C34700 001SHOCK ABSORBER ASSY - FRONT, RH28.09.200001.07.2002
54640A/260K55B34700 001SHOCK ABSORBER ASSY - FRONT, RH08.07.199928.09.2000
54640A/26S0K55B34700
Warning: Undefined array key "type" in /var/www/7zap/cats/cat/main/part.php on line 96

: 0K55B34700		001SHOCK ABSORBER ASSY - FRONT, RH, [PRODUCT LINE 2: Not to be used for warranty repair]08.07.199928.09.2000
54640A/260K55F34700 001SHOCK ABSORBER ASSY - FRONT, RH28.09.200001.11.2005
54640A/26S0K55F34700
Warning: Undefined array key "type" in /var/www/7zap/cats/cat/main/part.php on line 96

: 0K55F34700		001SHOCK ABSORBER ASSY - FRONT, RH, [PRODUCT LINE 2: Not to be used for warranty repair]28.09.200001.11.2005
54630A/270K55A34900 001SHOCK ABSORBER ASSY - FRONT, LH08.07.199928.09.2000
54630A/270K55C34900 001SHOCK ABSORBER ASSY - FRONT, LH28.09.200001.07.2002
54630A/27S0K55C34900
Warning: Undefined array key "type" in /var/www/7zap/cats/cat/main/part.php on line 96

: 0K55C34900		001SHOCK ABSORBER ASSY - FRONT, LH, [PRODUCT LINE 2: Not to be used for warranty repair]28.09.200001.07.2002
54630A/270K55B34900 001SHOCK ABSORBER ASSY - FRONT, LH08.07.199928.09.2000
54630A/27S0K55B34900
Warning: Undefined array key "type" in /var/www/7zap/cats/cat/main/part.php on line 96

: 0K55B34900		001SHOCK ABSORBER ASSY - FRONT, LH, [PRODUCT LINE 2: Not to be used for warranty repair]08.07.199928.09.2000
54630A/270K55F34900 001SHOCK ABSORBER ASSY - FRONT, LH28.09.200001.11.2005
54630A/27S0K55F34900
Warning: Undefined array key "type" in /var/www/7zap/cats/cat/main/part.php on line 96

: 0K55F34900		001SHOCK ABSORBER ASSY - FRONT, LH, [PRODUCT LINE 2: Not to be used for warranty repair]28.09.200001.11.2005
1350TC/28K999511800 002WASHER - [PLAIN]08.07.199901.11.2005
1360GG/29K999711800 002WASHER - SPRING08.07.199901.11.2005
1350GB/30K999522400 002WASHER - [PLAIN]08.07.199901.11.2005
1324CC/31K999211400 004NUT, SOFT TOP08.07.199901.11.2005
1350NC/32K999511430 002WASHER - [PLAIN]08.07.199901.11.2005
K9997E/33K999711400 004WASHER - SPRING, DSL08.07.199901.11.2005
REF. 3300FRONT AXLE
REF. 3410CROSSMEMBER & STABILIZER
