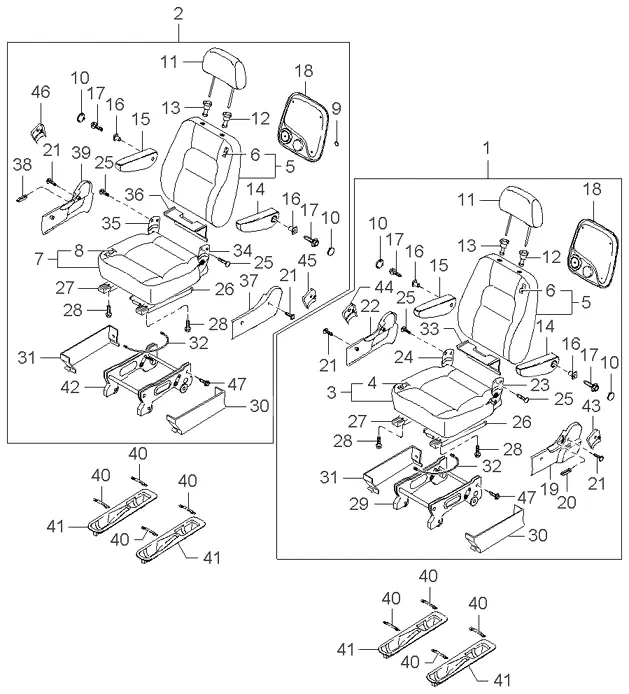

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 89300K/1 | 0K54K57300K446 | 001 | SEAT - 2ND, LH | | 03.07.2002 | 31.03.2003 |
|
| 89300H/1 | 0K54K57300M446 | 001 | SEAT - REAR 1ST, LH | | 31.03.2003 | 25.06.2003 |
|
| 57300B/1 | 0K54K57300MCQ1 | 001 | SEAT - REAR 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89300K/1 | 2K54A57300J444 | 001 | SEAT - 2ND, LH | | 03.07.2002 | 31.03.2003 |
|
| 89300H/1 | 2K54A57300L444 | 001 | SEAT - REAR 1ST, LH | | 31.03.2003 | 25.06.2003 |
|
| 57300B/1 | 2K54A57300LCQ3 | 001 | SEAT - REAR 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89300K/1 | 2K54A57300JBT4 | 001 | SEAT - 2ND, LH | | 03.07.2002 | 31.03.2003 |
|
| 89300H/1 | 2K54A57300LBT4 | 001 | SEAT - REAR 1ST, LH | | 31.03.2003 | 25.06.2003 |
|
| 57300B/1 | 2K54A57300LGE3 | 001 | SEAT - REAR 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89300K/1 | 6K54J57300L445 | 001 | SEAT - 2ND, LH | | 03.07.2002 | 31.03.2003 |
|
| 89300H/1 | 6K54J57300N445 | 001 | SEAT - REAR 1ST, LH | | 31.03.2003 | 25.06.2003 |
|
| 57300B/1 | 6K54J57300NCQ6 | 001 | SEAT - REAR 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89300K/1 | 6K54J57300LBT7 | 001 | SEAT - 2ND, LH | | 03.07.2002 | 31.03.2003 |
|
| 89300H/1 | 6K54J57300NBT7 | 001 | SEAT - REAR 1ST, LH | | 31.03.2003 | 25.06.2003 |
|
| 57300B/1 | 6K54J57300NGE6 | 001 | SEAT - REAR 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89300G/2 | 0K54K57400K446 | 001 | SEAT - REAR 1ST, RH | | 03.07.2002 | 31.03.2003 |
|
| 89300G/2 | 0K54K57400M446 | 001 | SEAT - REAR 1ST, RH | | 31.03.2003 | 25.06.2003 |
|
| 57300A/2 | 0K54K57400MCQ1 | 001 | SEAT - REAR 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89300G/2 | 2K54A57400J444 | 001 | SEAT - REAR 1ST, RH | | 03.07.2002 | 31.03.2003 |
|
| 89300G/2 | 2K54A57400L444 | 001 | SEAT - REAR 1ST, RH | | 31.03.2003 | 25.06.2003 |
|
| 57300A/2 | 2K54A57400LCQ3 | 001 | SEAT - REAR 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89300G/2 | 2K54A57400JBT4 | 001 | SEAT - REAR 1ST, RH | | 03.07.2002 | 31.03.2003 |
|
| 89300G/2 | 2K54A57400LBT4 | 001 | SEAT - REAR 1ST, RH | | 31.03.2003 | 25.06.2003 |
|
| 57300A/2 | 2K54A57400LGE3 | 001 | SEAT - REAR 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89300G/2 | 6K54J57400L445 | 001 | SEAT - REAR 1ST, RH | | 03.07.2002 | 31.03.2003 |
|
| 89300G/2 | 6K54J57400N445 | 001 | SEAT - REAR 1ST, RH | | 31.03.2003 | 25.06.2003 |
|
| 57300A/2 | 6K54J57400NCQ6 | 001 | SEAT - REAR 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89300G/2 | 6K54J57400LBT7 | 001 | SEAT - REAR 1ST, RH | | 03.07.2002 | 31.03.2003 |
|
| 89300G/2 | 6K54J57400NBT7 | 001 | SEAT - REAR 1ST, RH | | 31.03.2003 | 25.06.2003 |
|
| 57300A/2 | 6K54J57400NGE6 | 001 | SEAT - REAR 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89010A/3 | 0K54K57310B446 | 001 | CUSHION ASSY - REAR SEAT, LH | | 03.07.2002 | 25.06.2003 |
|
| 89010A/3 | 0K54K57310BCQ1 | 001 | CUSHION ASSY - REAR SEAT, LH | | 25.06.2003 | 01.11.2005 |
|
| 89010A/3 | 2K52Y57310B444 | 001 | CUSHION ASSY - REAR SEAT, LH | | 03.07.2002 | 25.06.2003 |
|
| 89010A/3 | 2K52Y57310BCQ3 | 001 | CUSHION ASSY - REAR SEAT, LH | | 25.06.2003 | 01.11.2005 |
|
| 89010A/3 | 2K52Y57310BBT4 | 001 | CUSHION ASSY - REAR SEAT, LH | | 03.07.2002 | 25.06.2003 |
|
| 89010A/3 | 2K52Y57310BGE3 | 001 | CUSHION ASSY - REAR SEAT, LH | | 25.06.2003 | 01.11.2005 |
|
| 89010A/3 | 6K54J57310B445 | 001 | CUSHION ASSY - REAR SEAT, LH | | 03.07.2002 | 25.06.2003 |
|
| 89010A/3 | 6K54J57310BCQ6 | 001 | CUSHION ASSY - REAR SEAT, LH | | 25.06.2003 | 01.11.2005 |
|
| 89010A/3 | 6K54J57310BBT7 | 001 | CUSHION ASSY - REAR SEAT, LH | | 03.07.2002 | 25.06.2003 |
|
| 89010A/3 | 6K54J57310BGE6 | 001 | CUSHION ASSY - REAR SEAT, LH | | 25.06.2003 | 01.11.2005 |
|
| 88311B/4 | 0K54K88915446 | 001 | TRIM - CUSHION REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 88311B/4 | 0K54K88915CQ1 | 001 | TRIM - CUSHION REAR, LH | | 25.06.2003 | 01.11.2005 |
|
| 88311B/4 | 2K52Y88915444 | 001 | TRIM - CUSHION REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 88311B/4 | 2K52Y88915CQ3 | 001 | TRIM - CUSHION REAR, LH | | 25.06.2003 | 01.11.2005 |
|
| 88311B/4 | 2K52Y88915BT4 | 001 | TRIM - CUSHION REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 88311B/4 | 2K52Y88915GE3 | 001 | TRIM - CUSHION REAR, LH | | 25.06.2003 | 01.11.2005 |
|
| 89440D/4 | 6K54J88915445 | 001 | TRIM - ASSY, CUSHION, 1ST, LH | | 03.07.2002 | 25.06.2003 |
|
| 89440D/4 | 6K54J88915CQ6 | 001 | TRIM - ASSY, CUSHION, 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89440D/4 | 6K54J88915BT7 | 001 | TRIM - ASSY, CUSHION, 1ST, LH | | 03.07.2002 | 25.06.2003 |
|
| 89440D/4 | 6K54J88915GE6 | 001 | TRIM - ASSY, CUSHION, 1ST, LH | | 25.06.2003 | 01.11.2005 |
|
| 89050/5 | 0K54K57350A446 | 001 | BACK ASSY - 2ND SEAT | | 03.07.2002 | 25.06.2003 |
|
| 89050/5 | 0K54K57350BCQ1 | 001 | BACK ASSY - 2ND SEAT | | 25.06.2003 | 01.11.2005 |
|
| 89050/5 | 2K52Y57350A444 | 001 | BACK ASSY - 2ND SEAT | | 03.07.2002 | 25.06.2003 |
|
| 89050/5 | 2K52Y57350BCQ3 | 001 | BACK ASSY - 2ND SEAT | | 25.06.2003 | 01.11.2005 |
|
| 89050/5 | 2K52Y57350ABT4 | 001 | BACK ASSY - 2ND SEAT | | 03.07.2002 | 25.06.2003 |
|
| 89050/5 | 2K52Y57350BGE3 | 001 | BACK ASSY - 2ND SEAT | | 25.06.2003 | 01.11.2005 |
|
| 89050/5 | 6K54J57350A445 | 001 | BACK ASSY - 2ND SEAT | | 03.07.2002 | 25.06.2003 |
|
| 89050/5 | 6K54J57350BCQ6 | 001 | BACK ASSY - 2ND SEAT | | 25.06.2003 | 01.11.2005 |
|
| 89050/5 | 6K54J57350ABT7 | 001 | BACK ASSY - 2ND SEAT | | 03.07.2002 | 25.06.2003 |
|
| 89050/5 | 6K54J57350BGE6 | 001 | BACK ASSY - 2ND SEAT | | 25.06.2003 | 01.11.2005 |
|
| 57321/6 | 0K54K88935A446 | 001 | TRIM-RR.1ST BACK | | 03.07.2002 | 25.06.2003 |
|
| 57321/6 | 0K54K88935ACQ1 | 001 | TRIM-RR.1ST BACK | | 25.06.2003 | 01.11.2005 |
|
| 57321/6 | 2K52Y88935A444 | 001 | TRIM-RR.1ST BACK | | 03.07.2002 | 25.06.2003 |
|
| 57321/6 | 2K52Y88935ACQ3 | 001 | TRIM-RR.1ST BACK | | 25.06.2003 | 01.11.2005 |
|
| 57321/6 | 2K52Y88935ABT4 | 001 | TRIM-RR.1ST BACK | | 03.07.2002 | 25.06.2003 |
|
| 57321/6 | 2K52Y88935AGE3 | 001 | TRIM-RR.1ST BACK | | 25.06.2003 | 01.11.2005 |
|
| 57321/6 | 6K54J88935A445 | 001 | TRIM-RR.1ST BACK | | 03.07.2002 | 25.06.2003 |
|
| 57321/6 | 6K54J88935ACQ6 | 001 | TRIM-RR.1ST BACK | | 25.06.2003 | 01.11.2005 |
|
| 57321/6 | 6K54J88935ABT7 | 001 | TRIM-RR.1ST BACK | | 03.07.2002 | 25.06.2003 |
|
| 57321/6 | 6K54J88935AGE6 | 001 | TRIM-RR.1ST BACK | | 25.06.2003 | 01.11.2005 |
|
| 89310H/7 | 0K54K57410B446 | 001 | CUSHION-REAR 1ST,RH | | 03.07.2002 | 25.06.2003 |
|
| 57310A/7 | 0K54K57410BCQ1 | 001 | CUSHION-REAR 1ST,RH | | 25.06.2003 | 01.11.2005 |
|
| 89310H/7 | 2K52Y57410B444 | 001 | CUSHION-REAR 1ST,RH | | 03.07.2002 | 25.06.2003 |
|
| 57310A/7 | 2K52Y57410BCQ3 | 001 | CUSHION-REAR 1ST,RH | | 25.06.2003 | 01.11.2005 |
|
| 89310H/7 | 2K52Y57410BBT4 | 001 | CUSHION-REAR 1ST,RH | | 03.07.2002 | 25.06.2003 |
|
| 57310A/7 | 2K52Y57410BGE3 | 001 | CUSHION-REAR 1ST,RH | | 25.06.2003 | 01.11.2005 |
|
| 89310K/7 | 6K54J57410B445 | 001 | CUSHION - 2ND, RH | | 03.07.2002 | 25.06.2003 |
|
| 57310A/7 | 6K54J57410BCQ6 | 001 | CUSHION-REAR 1ST,RH | | 25.06.2003 | 01.11.2005 |
|
| 89310H/7 | 6K54J57410BBT7 | 001 | CUSHION-REAR 1ST,RH | | 03.07.2002 | 25.06.2003 |
|
| 57310A/7 | 6K54J57410BGE6 | 001 | CUSHION-REAR 1ST,RH | | 25.06.2003 | 01.11.2005 |
|
| 89440C/8 | 0K54K88965446 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 03.07.2002 | 25.06.2003 |
|
| 89440C/8 | 0K54K88965CQ1 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89440C/8 | 2K52Y88965444 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 03.07.2002 | 25.06.2003 |
|
| 89440C/8 | 2K52Y88965CQ3 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89440C/8 | 2K52Y88965BT4 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 03.07.2002 | 25.06.2003 |
|
| 89440C/8 | 2K52Y88965GE3 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89440C/8 | 6K54J88965445 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 03.07.2002 | 25.06.2003 |
|
| 89440C/8 | 6K54J88965CQ6 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89440C/8 | 6K54J88965BT7 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 03.07.2002 | 25.06.2003 |
|
| 89440C/8 | 6K54J88965GE6 | 001 | TRIM - ASSY, CUSHION, 1ST, RH | | 25.06.2003 | 01.11.2005 |
|
| 88379/9 | 0K5538837944 | 004 | CAP & TAPPING SCREW | | 03.07.2002 | 02.01.2003 |
|
| 88379/9 | 0K55388379BT | 004 | CAP & TAPPING SCREW | | 03.07.2002 | 02.01.2003 |
|
| 88911F/10 | 0K5528810944 | 002 | CAP - ARMREST | | 03.07.2002 | 25.06.2003 |
|
| 88911F/10 | 0K55288109BT | 002 | CAP - ARMREST | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 0K53A88140446 | 002 | HEADREST ASSY | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 0K53A88140CQ1 | 002 | HEADREST ASSY | | 25.06.2003 | 01.11.2005 |
|
| 88110A/11 | 0K52Y88140444 | 002 | HEADREST ASSY | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 0K52Y88140CQ3 | 002 | HEADREST ASSY | | 25.06.2003 | 01.11.2005 |
|
| 88110A/11 | 0K52Y88140BT4 | 002 | HEADREST ASSY | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 0K52Y88140GE3 | 002 | HEADREST ASSY | | 25.06.2003 | 01.11.2005 |
|
| 88110A/11 | 3K53B88140445 | 002 | HEADREST ASSY | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 3K53B88140CQ6 | 002 | HEADREST ASSY | | 25.06.2003 | 01.11.2005 |
|
| 88110A/11 | 3K53B88140BT7 | 002 | HEADREST ASSY | | 03.07.2002 | 25.06.2003 |
|
| 88110A/11 | 3K53B88140GE6 | 002 | HEADREST ASSY | | 25.06.2003 | 01.11.2005 |
|
| 88021/12 | 0K95A8814344 | 002 | GUIDE - POLE NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 88021/12 | 0K95A88143CY | 002 | GUIDE - POLE NO. 1 | | 25.06.2003 | 01.11.2005 |
|
| 88021/12 | 0K95A88143BT | 002 | GUIDE - POLE NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 88021/12 | 0K95A88143GE | 002 | GUIDE - POLE NO. 1 | | 25.06.2003 | 01.11.2005 |
|
| 88143E/13 | 0K95A8814444 | 002 | GUIDE ASSY-POLE NO.2 | | 03.07.2002 | 25.06.2003 |
|
| 88022/13 | 0K95A88144CY | 002 | GUIDE - POLE NO. 2 | | 25.06.2003 | 01.11.2005 |
|
| 88143E/13 | 0K95A88144BT | 002 | GUIDE ASSY-POLE NO.2 | | 03.07.2002 | 25.06.2003 |
|
| 88022/13 | 0K95A88144GE | 002 | GUIDE - POLE NO. 2 | | 25.06.2003 | 01.11.2005 |
|
| 69770Z/14 | 0K54K88425446 | 002 | ARMREST ASSY - REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 68562/14 | 0K54K88425CQ1 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770Z/14 | 0K52Y88425444 | 002 | ARMREST ASSY - REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 68562/14 | 0K52Y88425CQ3 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770Z/14 | 0K52Y88425BT4 | 002 | ARMREST ASSY - REAR, LH | | 03.07.2002 | 25.06.2003 |
|
| 68562/14 | 0K52Y88425GE3 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770Z/14 | 6K54J88425445 | 002 | ARMREST ASSY - REAR, LH | | 03.07.2002 | 03.07.2002 |
|
| 68562/14 | 6K54J88425A445 | 002 | ARMREST, LH | | 03.07.2002 | 25.06.2003 |
|
| 68562/14 | 6K54J88425ACQ6 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770Z/14 | 6K54J88425BT7 | 002 | ARMREST ASSY - REAR, LH | | 03.07.2002 | 03.07.2002 |
|
| 68562/14 | 6K54J88425ABT7 | 002 | ARMREST, LH | | 03.07.2002 | 25.06.2003 |
|
| 68562/14 | 6K54J88425AGE6 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770D/15 | 0K54K88325446 | 002 | ARMREST ASSY - REAR, RH | | 03.07.2002 | 25.06.2003 |
|
| 68562/15 | 0K54K88425CQ1 | 002 | ARMREST, LH | | 25.06.2003 | 01.11.2005 |
|
| 69770D/15 | 0K52Y88325444 | 002 | ARMREST ASSY - REAR, RH | | 03.07.2002 | 25.06.2003 |
|
| 6853A/15 | 0K52Y88325CQ3 | 002 | ARMREST, RH | | 25.06.2003 | 01.11.2005 |
|
| 69770D/15 | 0K52Y88325BT4 | 002 | ARMREST ASSY - REAR, RH | | 03.07.2002 | 25.06.2003 |
|
| 6853A/15 | 0K52Y88325GE3 | 002 | ARMREST, RH | | 25.06.2003 | 01.11.2005 |
|
| 69770D/15 | 6K54J88325445 | 002 | ARMREST ASSY - REAR, RH | | 03.07.2002 | 03.07.2002 |
|
| 6853A/15 | 6K54J88325A445 | 002 | ARMREST, RH | | 03.07.2002 | 25.06.2003 |
|
| 6853A/15 | 6K54J88325ACQ6 | 002 | ARMREST, RH | | 25.06.2003 | 01.11.2005 |
|
| 69770D/15 | 6K54J88325BT7 | 002 | ARMREST ASSY - REAR, RH | | 03.07.2002 | 03.07.2002 |
|
| 6853A/15 | 6K54J88325ABT7 | 002 | ARMREST, RH | | 03.07.2002 | 25.06.2003 |
|
| 6853A/15 | 6K54J88325AGE6 | 002 | ARMREST, RH | | 25.06.2003 | 01.11.2005 |
|
| 89992/16 | 0K72R88284C | 004 | BUSH - ARMREST | | 03.07.2002 | 01.11.2005 |
|
| 88918/17 | 0K72R88397 | 004 | BOLT - ARMREST MOUNTING | | 03.07.2002 | 01.11.2005 |
|
| 88141C/18 | 0K5538836444 | 002 | TABLE - SEAT BACK | | 03.07.2002 | 10.02.2003 |
|
| 88141C/18 | 0K55388364A44 | 002 | TABLE - SEAT BACK | | 10.02.2003 | 25.06.2003 |
|
| 88141C/18 | 0K55388364ACY | 002 | TABLE - SEAT BACK | | 25.06.2003 | 01.11.2005 |
|
| 88141C/18 | 0K55388364BT | 002 | TABLE - SEAT BACK | | 03.07.2002 | 10.02.2003 |
|
| 88141C/18 | 0K55388364ABT | 002 | TABLE - SEAT BACK | | 10.02.2003 | 25.06.2003 |
|
| 88141C/18 | 0K55388364AGE | 002 | TABLE - SEAT BACK | | 25.06.2003 | 01.11.2005 |
|
| 88006D/19 | 0K54J88368A44 | 001 | COVER - SEAT SIDE, NO. 2 | | 03.07.2002 | 25.06.2003 |
|
| 68272Z/19 | 0K54J88368ACY | 001 | COVER, LH | | 25.06.2003 | 01.11.2005 |
|
| 88006D/19 | 0K54J88368ABT | 001 | COVER - SEAT SIDE, NO. 2 | | 03.07.2002 | 25.06.2003 |
|
| 68272Z/19 | 0K54J88368AGE | 001 | COVER, LH | | 25.06.2003 | 01.11.2005 |
|
| 88254Z/20 | 0K5528813544 | 001 | KNOB RECLINER, LH | | 03.07.2002 | 25.06.2003 |
|
| 88254Z/20 | 0K55288135CY | 001 | KNOB RECLINER, LH | | 25.06.2003 | 01.11.2005 |
|
| 88254Z/20 | 0K55288135BT | 001 | KNOB RECLINER, LH | | 03.07.2002 | 25.06.2003 |
|
| 88254Z/20 | 0K55288135GE | 001 | KNOB RECLINER, LH | | 25.06.2003 | 01.11.2005 |
|
| 1018AA/21 | K997630512B | 010 | SCREW - TAPPING | | 03.07.2002 | 01.11.2005 |
|
| 88205/22 | 1K54J8836844 | 001 | COVER - SIDE REAR NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 68272/22 | 1K54J88368CY | 001 | COVER, RH | | 25.06.2003 | 01.11.2005 |
|
| 88205/22 | 1K54J88368BT | 001 | COVER - SIDE REAR NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 68272/22 | 1K54J88368GE | 001 | COVER, RH | | 25.06.2003 | 01.11.2005 |
|
| 88750E/23 | 0K54J88365C | 001 | RECLINER ASSY - REAR 1ST SEAT LH, LH | | 03.07.2002 | 01.11.2005 |
|
| 88750F/24 | 1K54J88365B | 001 | RECLINER ASSY - REAR 1ST SEAT LH, RH | | 03.07.2002 | 01.11.2005 |
|
| 86836A/25 | 1K52Y88155 | 008 | BOLT - HINGE | | 03.07.2002 | 01.11.2005 |
|
| 89500G/26 | 0K54J88301A | 001 | TRACK ASSY - REAR SEAT | | 03.07.2002 | 01.11.2005 |
|
| 88064A/27 | 0K54J88304A | 001 | SLIDE ASSY,NO.4 | | 03.07.2002 | 01.11.2005 |
|
| 1129AB/28 | K997840816 | 004 | BOLT, DSL | | 03.07.2002 | 01.11.2005 |
|
| 89810B/29 | 2K54J88710C | 001 | LEG ASSY - REAR SEAT CUSHION | | 03.07.2002 | 01.11.2005 |
|
| 89615E/30 | 0K54J8879044 | 001 | COVER - LEG, LH | | 03.07.2002 | 25.06.2003 |
|
| 88790A/30 | 0K54J88790CY | 001 | LEG COVER - REAR, LH | | 25.06.2003 | 01.11.2005 |
|
| 89615E/30 | 0K54J88790BT | 001 | COVER - LEG, LH | | 03.07.2002 | 25.06.2003 |
|
| 88790A/30 | 0K54J88790GE | 001 | LEG COVER - REAR, LH | | 25.06.2003 | 01.11.2005 |
|
| 89616C/31 | 0K54J8889044 | 001 | COVER - LEG, RH | | 03.07.2002 | 25.06.2003 |
|
| 88790Z/31 | 0K54J88890CY | 001 | LEG COVER - REAR, RH | | 25.06.2003 | 01.11.2005 |
|
| 89616C/31 | 0K54J88890BT | 001 | COVER - LEG, RH | | 03.07.2002 | 25.06.2003 |
|
| 88790Z/31 | 0K54J88890GE | 001 | LEG COVER - REAR, RH | | 25.06.2003 | 01.11.2005 |
|
| 88514B/32 | 0K54J88305 | 001 | CABLE ASSY | | 03.07.2002 | 01.11.2005 |
|
| 89790C/33 | 1K54J8879044 | 001 | LEG BACK COVER-REAR,LH | | 03.07.2002 | 25.06.2003 |
|
| 88790B/33 | 1K54J88790CY | 001 | LEG BACK COVER-REAR,LH | | 25.06.2003 | 01.11.2005 |
|
| 89790C/33 | 1K54J88790BT | 001 | LEG BACK COVER-REAR,LH | | 03.07.2002 | 25.06.2003 |
|
| 88790B/33 | 1K54J88790GE | 001 | LEG BACK COVER-REAR,LH | | 25.06.2003 | 01.11.2005 |
|
| 88750H/34 | 0K54J88465C | 001 | RECLINER ASSY - REAR 1ST SEAT RH, RH | | 03.07.2002 | 01.11.2005 |
|
| 88750G/35 | 1K54J88465B | 001 | RECLINER ASSY - REAR 1ST SEAT RH, LH | | 03.07.2002 | 01.11.2005 |
|
| 89790D/36 | 1K54J8889044 | 001 | LEG BACK COVER-REAR,RH | | 03.07.2002 | 25.06.2003 |
|
| 88790Y/36 | 1K54J88890CY | 001 | LEG BACK COVER-REAR,RH | | 25.06.2003 | 01.11.2005 |
|
| 89790D/36 | 1K54J88890BT | 001 | LEG BACK COVER-REAR,RH | | 03.07.2002 | 25.06.2003 |
|
| 88790Y/36 | 1K54J88890GE | 001 | LEG BACK COVER-REAR,RH | | 25.06.2003 | 01.11.2005 |
|
| 88006D/37 | 1K54J8846844 | 001 | COVER - SEAT SIDE, NO. 2 | | 03.07.2002 | 25.06.2003 |
|
| 68272Z/37 | 1K54J88468CY | 001 | COVER, LH | | 25.06.2003 | 01.11.2005 |
|
| 88006D/37 | 1K54J88468BT | 001 | COVER - SEAT SIDE, NO. 2 | | 03.07.2002 | 25.06.2003 |
|
| 68272Z/37 | 1K54J88468GE | 001 | COVER, LH | | 25.06.2003 | 01.11.2005 |
|
| 89036C/38 | 0K5528823544 | 001 | KNOB - RECLINER, RH | | 03.07.2002 | 25.06.2003 |
|
| 89036C/38 | 0K55288235CY | 001 | KNOB - RECLINER, RH | | 25.06.2003 | 01.11.2005 |
|
| 89036C/38 | 0K55288235BT | 001 | KNOB - RECLINER, RH | | 03.07.2002 | 25.06.2003 |
|
| 89036C/38 | 0K55288235GE | 001 | KNOB - RECLINER, RH | | 25.06.2003 | 01.11.2005 |
|
| 88205/39 | 0K54J88468A44 | 001 | COVER - SIDE REAR NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 68272/39 | 0K54J88468ACY | 001 | COVER, RH | | 25.06.2003 | 01.11.2005 |
|
| 88205/39 | 0K54J88468ABT | 001 | COVER - SIDE REAR NO. 1 | | 03.07.2002 | 25.06.2003 |
|
| 68272/39 | 0K54J88468AGE | 001 | COVER, RH | | 25.06.2003 | 01.11.2005 |
|
| 89411A/40 | 0K54J57510G | 008 | STRIKER - REAR SEAT | | 03.07.2002 | 01.11.2005 |
|
| 85870C/41 | 0K54J57511B44 | 004 | COVER - STRIKER | | 03.07.2002 | 25.06.2003 |
|
| 85870C/41 | 0K54J57511BCY | 004 | COVER - STRIKER | | 25.06.2003 | 01.11.2005 |
|
| 85870C/41 | 0K54J57511BBT | 004 | COVER - STRIKER | | 03.07.2002 | 25.06.2003 |
|
| 85870C/41 | 0K54J57511BGE | 004 | COVER - STRIKER | | 25.06.2003 | 01.11.2005 |
|
| 89810G/42 | 2K54J88810B | 001 | LEG ASSY - REAR SEAT, RH | | 03.07.2002 | 01.11.2005 |
|
| 88368A/43 | 0K52Y88368A44 | 001 | COVER - KNUCKLE, LH | | 03.07.2002 | 25.06.2003 |
|
| 88368A/43 | 0K52Y88368ACY | 001 | COVER - KNUCKLE, LH | | 25.06.2003 | 01.11.2005 |
|
| 88368A/43 | 0K52Y88368ABT | 001 | COVER - KNUCKLE, LH | | 03.07.2002 | 25.06.2003 |
|
| 88368A/43 | 0K52Y88368AGE | 001 | COVER - KNUCKLE, LH | | 25.06.2003 | 01.11.2005 |
|
| 88368/44 | 1K52Y8836844 | 001 | COVER - KNUCKLE, RH | | 03.07.2002 | 25.06.2003 |
|
| 88368/44 | 1K52Y88368CY | 001 | COVER - KNUCKLE, RH | | 25.06.2003 | 01.11.2005 |
|
| 88368/44 | 1K52Y88368BT | 001 | COVER - KNUCKLE, RH | | 03.07.2002 | 25.06.2003 |
|
| 88368/44 | 1K52Y88368GE | 001 | COVER - KNUCKLE, RH | | 25.06.2003 | 01.11.2005 |
|
| 88368A/45 | 1K52Y8846844 | 001 | COVER - KNUCKLE, LH | | 03.07.2002 | 25.06.2003 |
|
| 88368A/45 | 1K52Y88468CY | 001 | COVER - KNUCKLE, LH | | 25.06.2003 | 01.11.2005 |
|
| 88368A/45 | 1K52Y88468BT | 001 | COVER - KNUCKLE, LH | | 03.07.2002 | 25.06.2003 |
|
| 88368A/45 | 1K52Y88468GE | 001 | COVER - KNUCKLE, LH | | 25.06.2003 | 01.11.2005 |
|
| 88368/46 | 0K52Y88468A44 | 001 | COVER - KNUCKLE, RH | | 03.07.2002 | 25.06.2003 |
|
| 88368/46 | 0K52Y88468ACY | 001 | COVER - KNUCKLE, RH | | 25.06.2003 | 01.11.2005 |
|
| 88368/46 | 0K52Y88468ABT | 001 | COVER - KNUCKLE, RH | | 03.07.2002 | 25.06.2003 |
|
| 88368/46 | 0K52Y88468AGE | 001 | COVER - KNUCKLE, RH | | 25.06.2003 | 01.11.2005 |
|
| 1125KH/47 | 1125410303 | 032 | BOLT | | 22.04.2004 | 01.11.2005 |
|
