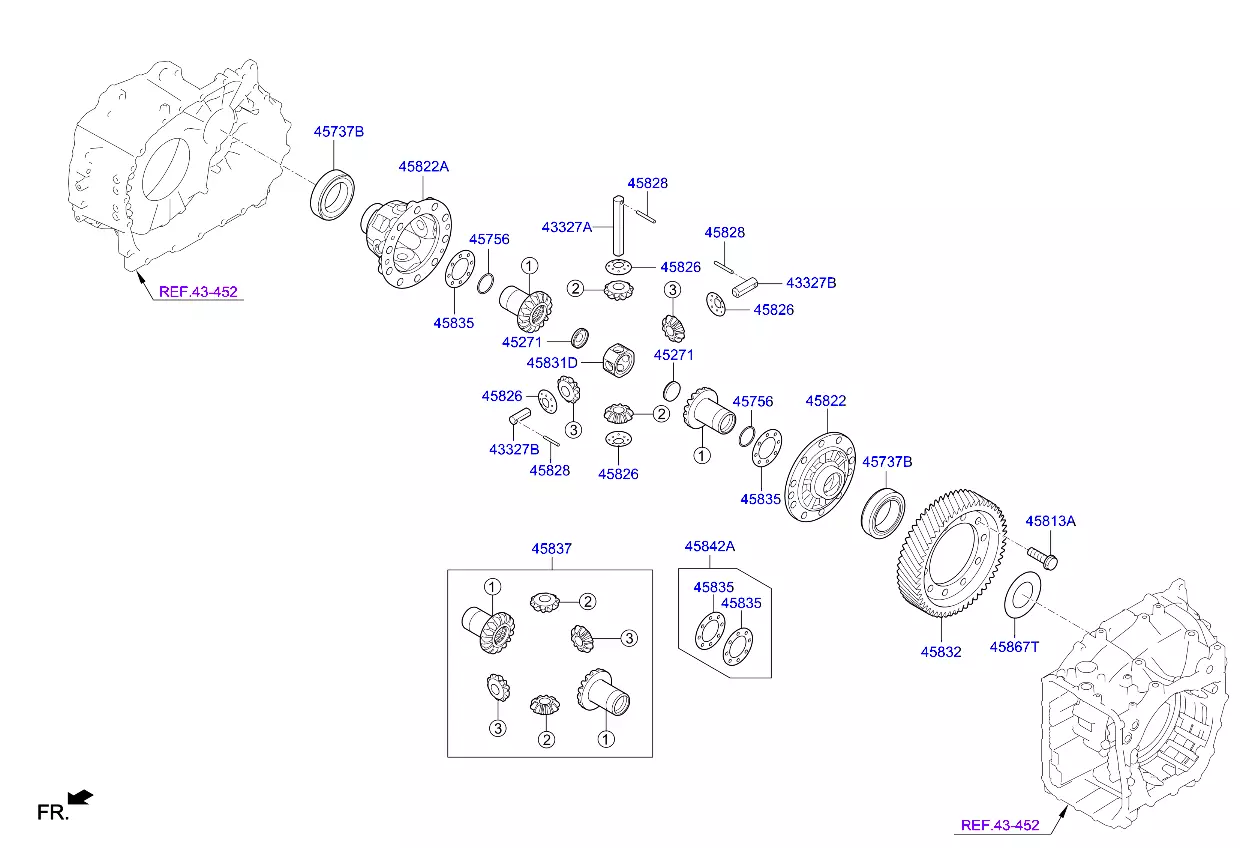

TRANSAXLE GEAR - AUTOMATIC KIA SPORTAGE HYBRID 22 (2023-) [Europe]

PNC	Part Number	Qty	Part Name	Start Date	End Date
43182	457083B601	1	GUIDE - OIL FRONT	27.10.2023
43327A	458274G100	1	SHAFT - PINION	27.10.2023
43327A	458274G400	1	SHAFT - PINION	27.10.2023
43327B	458363B000	2	SHAFT - PINION SHORT	27.10.2023
43327B	458364G100	2	SHAFT - PINION SHORT	27.10.2023
45271	458243B000	2	CAP - (SEALING)	27.10.2023
45495	457863B600	1	RACE & BEARING ASSY - THRUST	27.10.2023
45495	457863F800	1	RACE & BEARING ASSY - THRUST	27.10.2023
45636B	458533B212	1	RACE - THRUST, T=1.2	27.10.2023
45636B	458533B213	1	RACE - THRUST, T=1.3	27.10.2023
45636B	458533B214	1	RACE - THRUST, T=1.4	27.10.2023
45636B	458533B215	1	RACE - THRUST, T=1.5	27.10.2023
45636B	458533B216	1	RACE - THRUST, T=1.6	27.10.2023
45636B	458533B217	1	RACE - THRUST, T=1.7	27.10.2023
45636B	458533B218	1	RACE - THRUST, T=1.8	27.10.2023
45636B	458533B219	1	RACE - THRUST, T=1.9	27.10.2023
45636B	458533B220	1	RACE - THRUST, T=2.0	27.10.2023
45636B	458533B221	1	RACE - THRUST, T=2.1	27.10.2023
45636B	458533B222	1	RACE - THRUST, T=2.2	27.10.2023
45636B	458533B223	1	RACE - THRUST, T=2.3	27.10.2023
45636B	458533B224	1	RACE - THRUST, T=2.4	27.10.2023
45636B	458533B225	1	RACE - THRUST, T=2.5	27.10.2023
45636B	458533B226	1	RACE - THRUST, T=2.6	27.10.2023
45636B	458533B227	1	RACE - THRUST, T=2.7	27.10.2023
45714A	457183B601	10	WASHER - THRUST	27.10.2023
45715A	457013B600	1	GEAR - FRONT SUN	27.10.2023
45720	457103F800	1	CARRIER ASSY - PLANETARY, FRONT	27.10.2023
45720B	457203D000	1	GEAR KIT - AUTOMATIC TRANSAXLE TRANSFER DRIVEN	27.10.2023
45721	457293B630	1	WASHER - THRUST, T=3.0	27.10.2023
45721	457293B632	1	WASHER - THRUST, T=3.2	27.10.2023
45721	457293B634	1	WASHER - THRUST, T=3.4	27.10.2023
45721	457293B636	1	WASHER - THRUST, T=3.6	27.10.2023
45721	457293B638	1	WASHER - THRUST, T=3.8	27.10.2023
45721	457293B640	1	WASHER - THRUST, T=4.0	27.10.2023
45721	457293B642	1	WASHER - THRUST, T=4.2	27.10.2023
45721	457293B644	1	WASHER - THRUST, T=4.4	27.10.2023
45721	457293B646	1	WASHER - THRUST, T=4.6	27.10.2023
45728E	458843B601	6	WASHER - THRUST	27.10.2023
45730C	458983B601	6	WASHER - THRUST	27.10.2023
45737A	457373B800	1	BEARING - TAPER ROLLER	27.10.2023	21.02.2024
45737A	457374G100	1	BEARING - TAPER ROLLER	21.02.2024
45737B	458293D200	2	BEARING - TRANSFER DRIVEN GEAR	27.10.2023
45738B	457383B800	1	BEARING - AUTOMATIC TRANSMISSION TRANSFER GEAR	27.10.2023	21.02.2024
45738B	457384G100	1	BEARING - AUTOMATIC TRANSMISSION TRANSFER GEAR	21.02.2024
45740D	457603D500	1	CARRIER ASSY - PLANETARY, CENTER	27.10.2023
45740G	457903B600	1	GEAR ASSY - MIDDLE SUN	27.10.2023
45743A	457433B600	1	BEARING SET - THRUST	27.10.2023
45743B	457863B701	1	BEARING	27.10.2023
45744	457853F820	1	RACE - THRUST BEARING	27.10.2023
45748	457483B700	1	BEARING	27.10.2023
45756	458383B000	2	O-RING	27.10.2023
45761	457613F800	1	BEARING SET - THRUST	27.10.2023
45778	457773B600	1	WASHER - THRUST	27.10.2023
45778B	457783B600	1	GUIDE - OIL, MIDDLE	27.10.2023
45788	457883B600	1	RING - SNAP	27.10.2023
45790A	457963B803	1	GEAR ASSY - REAR ANNULUS	27.10.2023
45796	457803B600	1	GEAR - ANNULUS	27.10.2023
45798	457983F600	1	BEARING	27.10.2023
45811	458113B800	1	GEAR - TRANSFER DRIVE	27.10.2023
45813A	458333B000	10	BOLT	27.10.2023
45819	458193B600	1	NUT - LOCK	27.10.2023
45822	458214G100	1	CASE - DIFFERENTIAL	27.10.2023
45822A	458224G100	1	CUP - DIFFERENTIAL CASE	27.10.2023
45826	458263B000	4	WASHER	27.10.2023
45828	458283B000	3	PIN - LOCK	27.10.2023
45831D	458314G100	1	SUPPORT - PINION SHAFT	27.10.2023
45832	458323B810	1	GEAR - DIFFERENTIAL DRIVE	27.10.2023
45835	458353B060	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.60	27.10.2023
45835	458353B065	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.65	27.10.2023
45835	458353B070	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.70	27.10.2023
45835	458353B075	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.75	27.10.2023
45835	458353B080	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.80	27.10.2023
45835	458353B085	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.85	27.10.2023
45835	458353B090	2	SPACER - DIFFERENTIAL GEAR THRUST, T=1.90	27.10.2023
45837	458373B000	1	GEAR SET - DIFFERENTIAL	27.10.2023
45837	458373B020	1	GEAR SET - DIFFERENTIAL	27.10.2023
45842A	458343B000	1	SPACER SET - DIFFERENTIAL GEAR	27.10.2023
45849T	458493B601	1	SPACER, T=1.01	27.10.2023
45849T	458493B604	1	SPACER, T=1.04	27.10.2023
45849T	458493B607	1	SPACER, T=1.07	27.10.2023
45849T	458493B610	1	SPACER, T=1.10	27.10.2023
45849T	458493B613	1	SPACER, T=1.13	27.10.2023
45849T	458493B616	1	SPACER, T=1.16	27.10.2023
45849T	458493B619	1	SPACER, T=1.19	27.10.2023
45849T	458493B622	1	SPACER, T=1.22	27.10.2023
45849T	458493B625	1	SPACER, T=1.25	27.10.2023
45849T	458493B628	1	SPACER, T=1.28	27.10.2023
45849T	458493B631	1	SPACER, T=1.31	27.10.2023
45849T	458493B634	1	SPACER, T=1.34	27.10.2023
45849T	458493B683	1	SPACER, T=0.83	27.10.2023
45849T	458493B686	1	SPACER, T=0.86	27.10.2023
45849T	458493B689	1	SPACER, T=0.89	27.10.2023
45849T	458493B692	1	SPACER, T=0.92	27.10.2023
45849T	458493B695	1	SPACER, T=0.95	27.10.2023
45849T	458493B698	1	SPACER, T=0.98	27.10.2023
45851	4585126000	1	BEARING	27.10.2023
45852T	458493D000	1	SPACER	27.10.2023
45852T	458493D072	1	SPACER, T=2.07	27.10.2023
45852T	458493D082	1	SPACER, T=1.08	27.10.2023
45852T	458493D162	1	SPACER, T=2.16	27.10.2023
45852T	458493D172	1	SPACER, T=1.17	27.10.2023
45852T	458493D252	1	SPACER, T=2.25	27.10.2023
45852T	458493D262	1	SPACER, T=1.26	27.10.2023
45852T	458493D352	1	SPACER, T=1.35	27.10.2023
45852T	458493D442	1	SPACER, T=1.44	27.10.2023
45852T	458493D532	1	SPACER, T=1.53	27.10.2023
45852T	458493D622	1	SPACER, T=1.62	27.10.2023
45852T	458493D712	1	SPACER, T=1.71	27.10.2023
45852T	458493D802	1	SPACER, T=1.80	27.10.2023
45852T	458493D892	1	SPACER, T=1.89	27.10.2023
45852T	458493D902	1	SPACER, T=0.90	27.10.2023
45852T	458493D982	1	SPACER, T=1.98	27.10.2023
45852T	458493D992	1	SPACER, T=0.99	27.10.2023
45864A	458643D000	1	BEARING - DOUBLE	27.10.2023
45864A	458643D710	1	BEARING - DOUBLE	27.10.2023
45866	458663B600	1	SPACER SET - OUTPUT	27.10.2023
45867T	458673B001	1	SPACER, T=1.01	27.10.2023
45867T	458673B004	1	SPACER, T=1.04	27.10.2023
45867T	458673B007	1	SPACER, T=1.07	27.10.2023
45867T	458673B010	1	SPACER, T=1.10	27.10.2023
45867T	458673B013	1	SPACER, T=1.13	27.10.2023
45867T	458673B016	1	SPACER, T=1.16	27.10.2023
45867T	458673B019	1	SPACER, T=1.19	27.10.2023
45867T	458673B022	1	SPACER, T=1.22	27.10.2023
45867T	458673B025	1	SPACER, T=1.25	27.10.2023
45867T	458673B028	1	SPACER, T=1.28	27.10.2023
45867T	458673B031	1	SPACER, T=1.31	27.10.2023
45867T	458673B034	1	SPACER, T=1.34	27.10.2023
45867T	458673B077	1	SPACER, T=0.77	27.10.2023
45867T	458673B080	1	SPACER, T=0.80	27.10.2023
45867T	458673B083	1	SPACER, T=0.83	27.10.2023
45867T	458673B086	1	SPACER, T=0.86	27.10.2023
45867T	458673B089	1	SPACER, T=0.89	27.10.2023
45867T	458673B092	1	SPACER, T=0.92	27.10.2023
45867T	458673B095	1	SPACER, T=0.95	27.10.2023
45867T	458673B098	1	SPACER, T=0.98	27.10.2023
45868	458683B010	3	BOLT	27.10.2023
45868B	458683B040	6	BOLT	27.10.2023
45874A	458173B600	1	PLATE - STOPPER	27.10.2023
45888A	458883B601	3	GUIDE - OIL, REAR	27.10.2023
46530	457043D010	1	BEARING - BALL	27.10.2023
53513	457753B601	6	WASHER	27.10.2023
REF. 43-452	AUTOMATIC TRANSMISSION CASE

43182

457083B601

1

GUIDE - OIL FRONT

27.10.2023

43327A

458274G100

1

SHAFT - PINION

27.10.2023

43327A

458274G400

1

SHAFT - PINION

27.10.2023

43327B

458363B000

2

SHAFT - PINION SHORT

27.10.2023

43327B

458364G100

2

SHAFT - PINION SHORT

27.10.2023

45271

458243B000

2

CAP - (SEALING)

27.10.2023

45495

457863B600

1

RACE & BEARING ASSY - THRUST

27.10.2023

45495

457863F800

1

RACE & BEARING ASSY - THRUST

27.10.2023

45636B

458533B212

1

RACE - THRUST, T=1.2

27.10.2023

45636B

458533B213

1

RACE - THRUST, T=1.3

27.10.2023

45636B

458533B214

1

RACE - THRUST, T=1.4

27.10.2023

45636B

458533B215

1

RACE - THRUST, T=1.5

27.10.2023

45636B

458533B216

1

RACE - THRUST, T=1.6

27.10.2023

45636B

458533B217

1

RACE - THRUST, T=1.7

27.10.2023

45636B

458533B218

1

RACE - THRUST, T=1.8

27.10.2023

45636B

458533B219

1

RACE - THRUST, T=1.9

27.10.2023

45636B

458533B220

1

RACE - THRUST, T=2.0

27.10.2023

45636B

458533B221

1

RACE - THRUST, T=2.1

27.10.2023

45636B

458533B222

1

RACE - THRUST, T=2.2

27.10.2023

45636B

458533B223

1

RACE - THRUST, T=2.3

27.10.2023

45636B

458533B224

1

RACE - THRUST, T=2.4

27.10.2023

45636B

458533B225

1

RACE - THRUST, T=2.5

27.10.2023

45636B

458533B226

1

RACE - THRUST, T=2.6

27.10.2023

45636B

458533B227

1

RACE - THRUST, T=2.7

27.10.2023

45714A

457183B601

10

WASHER - THRUST

27.10.2023

45715A

457013B600

1

GEAR - FRONT SUN

27.10.2023

45720

457103F800

1

CARRIER ASSY - PLANETARY, FRONT

27.10.2023

45720B

457203D000

1

GEAR KIT - AUTOMATIC TRANSAXLE TRANSFER DRIVEN

27.10.2023

45721

457293B630

1

WASHER - THRUST, T=3.0

27.10.2023

45721

457293B632

1

WASHER - THRUST, T=3.2

27.10.2023

45721

457293B634

1

WASHER - THRUST, T=3.4

27.10.2023

45721

457293B636

1

WASHER - THRUST, T=3.6

27.10.2023

45721

457293B638

1

WASHER - THRUST, T=3.8

27.10.2023

45721

457293B640

1

WASHER - THRUST, T=4.0

27.10.2023

45721

457293B642

1

WASHER - THRUST, T=4.2

27.10.2023

45721

457293B644

1

WASHER - THRUST, T=4.4

27.10.2023

45721

457293B646

1

WASHER - THRUST, T=4.6

27.10.2023

45728E

458843B601

6

WASHER - THRUST

27.10.2023

45730C

458983B601

6

WASHER - THRUST

27.10.2023

45737A

457373B800

1

BEARING - TAPER ROLLER

27.10.2023

21.02.2024

45737A

457374G100

1

BEARING - TAPER ROLLER

21.02.2024

45737B

458293D200

2

BEARING - TRANSFER DRIVEN GEAR

27.10.2023

45738B

457383B800

1

BEARING - AUTOMATIC TRANSMISSION TRANSFER GEAR

27.10.2023

21.02.2024

45738B

457384G100

1

BEARING - AUTOMATIC TRANSMISSION TRANSFER GEAR

21.02.2024

45740D

457603D500

1

CARRIER ASSY - PLANETARY, CENTER

27.10.2023

45740G

457903B600

1

GEAR ASSY - MIDDLE SUN

27.10.2023

45743A

457433B600

1

BEARING SET - THRUST

27.10.2023

45743B

457863B701

1

BEARING

27.10.2023

45744

457853F820

1

RACE - THRUST BEARING

27.10.2023

45748

457483B700

1

BEARING

27.10.2023

45756

458383B000

2

O-RING

27.10.2023

45761

457613F800

1

BEARING SET - THRUST

27.10.2023

45778

457773B600

1

WASHER - THRUST

27.10.2023

45778B

457783B600

1

GUIDE - OIL, MIDDLE

27.10.2023

45788

457883B600

1

RING - SNAP

27.10.2023

45790A

457963B803

1

GEAR ASSY - REAR ANNULUS

27.10.2023

45796

457803B600

1

GEAR - ANNULUS

27.10.2023

45798

457983F600

1

BEARING

27.10.2023

45811

458113B800

1

GEAR - TRANSFER DRIVE

27.10.2023

45813A

458333B000

10

BOLT

27.10.2023

45819

458193B600

1

NUT - LOCK

27.10.2023

45822

458214G100

1

CASE - DIFFERENTIAL

27.10.2023

45822A

458224G100

1

CUP - DIFFERENTIAL CASE

27.10.2023

45826

458263B000

4

WASHER

27.10.2023

45828

458283B000

3

PIN - LOCK

27.10.2023

45831D

458314G100

1

SUPPORT - PINION SHAFT

27.10.2023

45832

458323B810

1

GEAR - DIFFERENTIAL DRIVE

27.10.2023

45835

458353B060

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.60

27.10.2023

45835

458353B065

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.65

27.10.2023

45835

458353B070

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.70

27.10.2023

45835

458353B075

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.75

27.10.2023

45835

458353B080

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.80

27.10.2023

45835

458353B085

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.85

27.10.2023

45835

458353B090

2

SPACER - DIFFERENTIAL GEAR THRUST, T=1.90

27.10.2023

45837

458373B000

1

GEAR SET - DIFFERENTIAL

27.10.2023

45837

458373B020

1

GEAR SET - DIFFERENTIAL

27.10.2023

45842A

458343B000

1

SPACER SET - DIFFERENTIAL GEAR

27.10.2023

45849T

458493B601

1

SPACER, T=1.01

27.10.2023

45849T

458493B604

1

SPACER, T=1.04

27.10.2023

45849T

458493B607

1

SPACER, T=1.07

27.10.2023

45849T

458493B610

1

SPACER, T=1.10

27.10.2023

45849T

458493B613

1

SPACER, T=1.13

27.10.2023

45849T

458493B616

1

SPACER, T=1.16

27.10.2023

45849T

458493B619

1

SPACER, T=1.19

27.10.2023

45849T

458493B622

1

SPACER, T=1.22

27.10.2023

45849T

458493B625

1

SPACER, T=1.25

27.10.2023

45849T

458493B628

1

SPACER, T=1.28

27.10.2023

45849T

458493B631

1

SPACER, T=1.31

27.10.2023

45849T

458493B634

1

SPACER, T=1.34

27.10.2023

45849T

458493B683

1

SPACER, T=0.83

27.10.2023

45849T

458493B686

1

SPACER, T=0.86

27.10.2023

45849T

458493B689

1

SPACER, T=0.89

27.10.2023

45849T

458493B692

1

SPACER, T=0.92

27.10.2023

45849T

458493B695

1

SPACER, T=0.95

27.10.2023

45849T

458493B698

1

SPACER, T=0.98

27.10.2023

45851

4585126000

1

BEARING

27.10.2023

45852T

458493D000

1

SPACER

27.10.2023

45852T

458493D072

1

SPACER, T=2.07

27.10.2023

45852T

458493D082

1

SPACER, T=1.08

27.10.2023

45852T

458493D162

1

SPACER, T=2.16

27.10.2023

45852T

458493D172

1

SPACER, T=1.17

27.10.2023

45852T

458493D252

1

SPACER, T=2.25

27.10.2023

45852T

458493D262

1

SPACER, T=1.26

27.10.2023

45852T

458493D352

1

SPACER, T=1.35

27.10.2023

45852T

458493D442

1

SPACER, T=1.44

27.10.2023

45852T

458493D532

1

SPACER, T=1.53

27.10.2023

45852T

458493D622

1

SPACER, T=1.62

27.10.2023

45852T

458493D712

1

SPACER, T=1.71

27.10.2023

45852T

458493D802

1

SPACER, T=1.80

27.10.2023

45852T

458493D892

1

SPACER, T=1.89

27.10.2023

45852T

458493D902

1

SPACER, T=0.90

27.10.2023

45852T

458493D982

1

SPACER, T=1.98

27.10.2023

45852T

458493D992

1

SPACER, T=0.99

27.10.2023

45864A

458643D000

1

BEARING - DOUBLE

27.10.2023

45864A

458643D710

1

BEARING - DOUBLE

27.10.2023

45866

458663B600

1

SPACER SET - OUTPUT

27.10.2023

45867T

458673B001

1

SPACER, T=1.01

27.10.2023

45867T

458673B004

1

SPACER, T=1.04

27.10.2023

45867T

458673B007

1

SPACER, T=1.07

27.10.2023

45867T

458673B010

1

SPACER, T=1.10

27.10.2023

45867T

458673B013

1

SPACER, T=1.13

27.10.2023

45867T

458673B016

1

SPACER, T=1.16

27.10.2023

45867T

458673B019

1

SPACER, T=1.19

27.10.2023

45867T

458673B022

1

SPACER, T=1.22

27.10.2023

45867T

458673B025

1

SPACER, T=1.25

27.10.2023

45867T

458673B028

1

SPACER, T=1.28

27.10.2023

45867T

458673B031

1

SPACER, T=1.31

27.10.2023

45867T

458673B034

1

SPACER, T=1.34

27.10.2023

45867T

458673B077

1

SPACER, T=0.77

27.10.2023

45867T

458673B080

1

SPACER, T=0.80

27.10.2023

45867T

458673B083

1

SPACER, T=0.83

27.10.2023

45867T

458673B086

1

SPACER, T=0.86

27.10.2023

45867T

458673B089

1

SPACER, T=0.89

27.10.2023

45867T

458673B092

1

SPACER, T=0.92

27.10.2023

45867T

458673B095

1

SPACER, T=0.95

27.10.2023

45867T

458673B098

1

SPACER, T=0.98

27.10.2023

45868

458683B010

3

BOLT

27.10.2023

45868B

458683B040

6

BOLT

27.10.2023

45874A

458173B600

1

PLATE - STOPPER

27.10.2023

45888A

458883B601

3

GUIDE - OIL, REAR

27.10.2023

46530

457043D010

1

BEARING - BALL

27.10.2023

53513

457753B601

6

WASHER

27.10.2023

REF. 43-452

AUTOMATIC TRANSMISSION CASE

TRANSAXLE GEAR - AUTOMATIC KIA SPORTAGE HYBRID 22 (2023)
